KAMERA CCTV MODEL : CP-220

PARAMETER : 1080P IR Turbo HD Bullet Camera

USER MANUAL

FITUR UTAMA

  • 2.0 Megapixel high-performance CMOS
  • Turbo HD output, up to 1080P resolution
  • True Day/Night
  • DNR, Smart IR
  • Up to 20m IR distance

KAMERA

  • Image Sensor
    Progressive Scan CMOS
  • Effective Pixels
    1280(H)*1080(V)
  • Min. Illumination
    Lux @(F1.2,AGC ON), 0 Lux with IR
  • Shutter Time
    1/25(1/30) s to 1/50,000s
  • Lens
    3.6mm (2.8mm, 6mm optional)
    Angle of View: 70.9°(3.6mm), 92°(2.8mm), 56.7°(6mm)
  • Lens Mount
    M12
  • Angle Adjustment
    Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
  • Day & Night
    ICR
  • Synchronization
    Internal synchronization
  • Video Frame Rate
    1080p@25fps/1080p@30fps
  • HD Video Output
    1 Turbo HD output

GENERAL

  • Working Temperature/Humidity
    -40 °C - 60 °C (-40 °F - 140 °F)
    Humidity 90% or less (non-condensing)
  • Power Supply
    12V DC
  • Power Consumption
    Max. 4W
  • Weather Proof Ratings
    IP66
  • IR Range
    Up to 20m

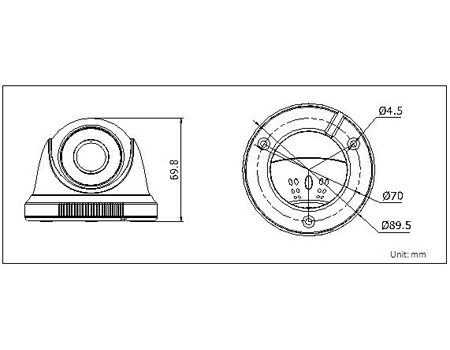

  • Dimension
    F89.5 × 69.8 mm (F2.76” ×5.89”)
  • Weight(approx.)
    260 g (0.57 lb)
